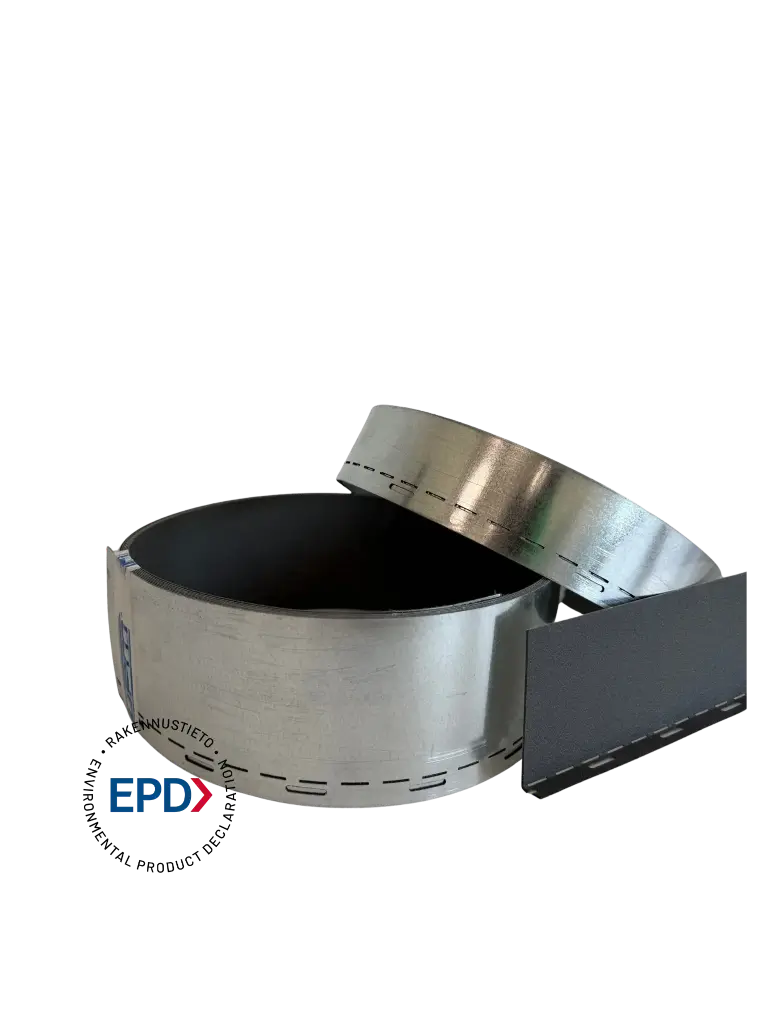

WPM METAL SHEET WATERSTOP R/L
Construction joint sheet for underground concrete structure
AREA OF APPLICATION:
WPM® METAL SHEET WATERSTOP R/L is used to waterproof construction joints like floor-wall, wall-wall, floor-floor, and wall-ceiling against pressurized water in various below-grade reinforced concrete structures. The most common use areas are parking houses, water tanks, etc.
PROPERTIES:
- Special coating, can be selected according to the place of use
- • Can be installed with installation fixers
- • Easy to connect with deformation PVC joint tapes
- • Watertight against pressurized water up to 24 m (2.4 bar), officially tested at TalTech University - N° 372-A/19
- • Tested for water pressure up to 15 bar - test protocol no.1/2024
- • Made in Estonia
SPECIFICATIONS:
- • Steel material: galvanized steel
- • Steel sheet height: as selected
- • Steel sheet thickness: 0,5 mm
- • Coating: as selected
- • Temperature resistance: -35°C - +75°C
- • Working temperature: no limits
PACKAGE:
Width 155+20 / 125+20 - all coatings
Box: 3 x 7,5 m detail, joint clips, 2 fixing glue tubes
Widht 65+20 - all coatings
Box: 4 x 7,5 m detail, joint clips, 2 fixing glue tubes
Start with the customer – find out what they want and give it to them.
Ehitusvuukidesõlmed
Here, you can find all construction nodes that we watertight with our materials, such as floor-wall, wall-ceiling, crack inducing waterstop and etc...
Paigaldusvideo
Vaata, kui lihtne on paigaldada vuugiplekki põranda-seina konstruktsiooni töövuuki.
| Упаковки |
|
| Упаковки |
|
Specifications
| platums | 155+20, 125+20, 65+20 |
| pārklājums | polimēru pārklājums, polimēru pārklājums + aizsargplēve, bitumens + bitumena pārklājums, bitumena pārklājums, Suitable for drinking water, polimēru + polimēru pārklājums |
| Pārdošanas iepakojums | Box (3x7,5m), Box (4x7,5m) |
| Marka | WPM |
