WPM® CRACK INDUCING WATERSTOP
Waterproofing element for below-grade reinforced cast-in-place concrete structures that control and waterproofs concrete shrinkage cracks while maintaining the structure's strength properties
AREA OF APPLICATION:

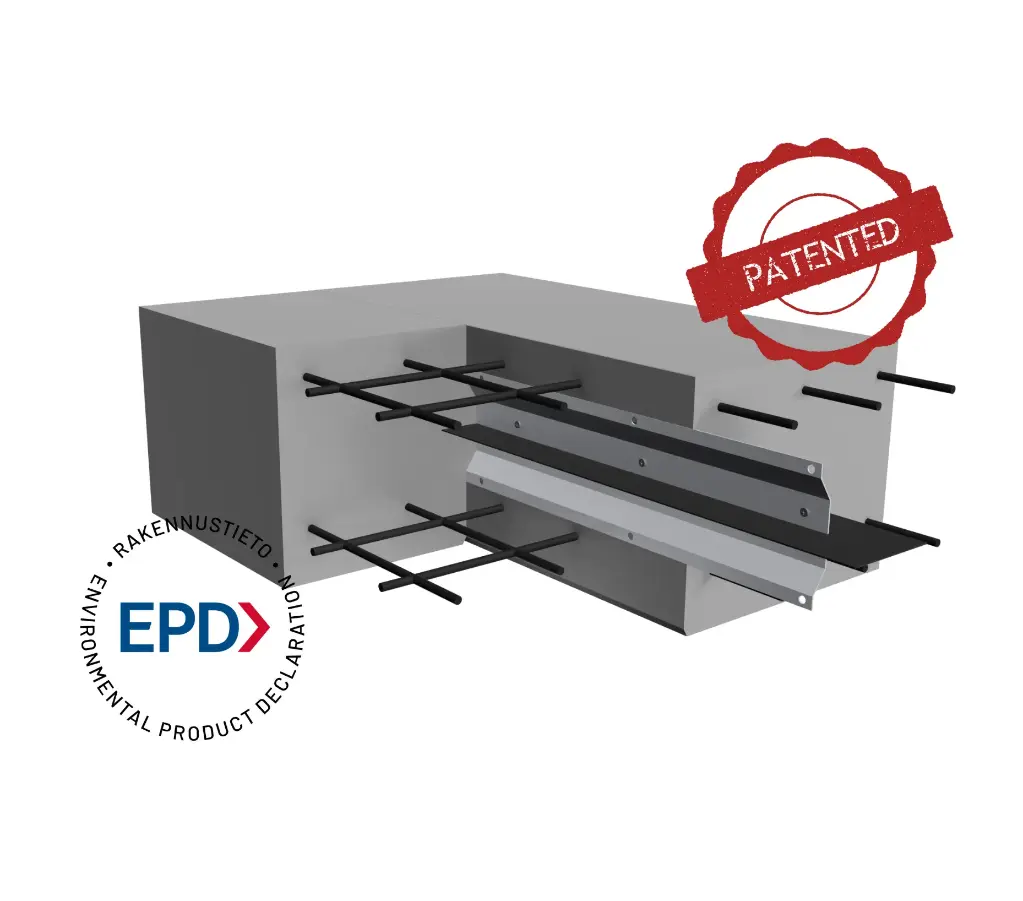

The WPM® CRACK INDUCING WATERSTOP is used in below-grade cast-in-place concrete structures between the reinforcement steel in the wall and the floor slab to make a controlled and watertight binding keyway-shaped shrinkage crack. The element is installed between the reinforcement rebars at a calculated distance depending on the design.
PROPERTIES:
- Controlled and waterproofed pre-defined shrinkage crack point
- Load-bearing watertight binding keyway-shaped shrinkage crack
- Special coating, highly elastic, not reactive with water
- The polymer coating turns homogeneous with concrete
- Watertight against pressurized water up to 24 m (2.4 bar), officially tested at TalTech University - N° 372-A/19
- Tested for water pressure up to 15 bar - test protocol no.1/2024
- Made in Estonia
SPECIFICATIONS:
- Steel material: galvanized steel
- Steel sheet width: 150 mm
- Steel sheet length: 2,5 m
- Steel sheet thickness: 0,7 mm
- Coating: polymer coating
- Thickness of the complete sheet: approx. 1,7 mm
- Color:
- Polymer coating: dark grey
- Galvanized steel sheet: silver
- Z-shaped galvanized steel sheet: 50, 60, 80, 100 mm
- Temperature resistance: -35°C - +75°C
- Working temperature: no limits
PACKAGE: (export)
6 x 2,2 m main detail, 12 x Z-shaped metal sheet details, joint clips, fixing glue tubes, metal screws.
Specifications
| garums | 2,2 m, 1,095m |
| platums | 2x50mm (20/15/15), 2x60mm (20/20/20), 2x80mm (20/40/20), 2x100mm (20/60/20) |
| Marka | WPM |
