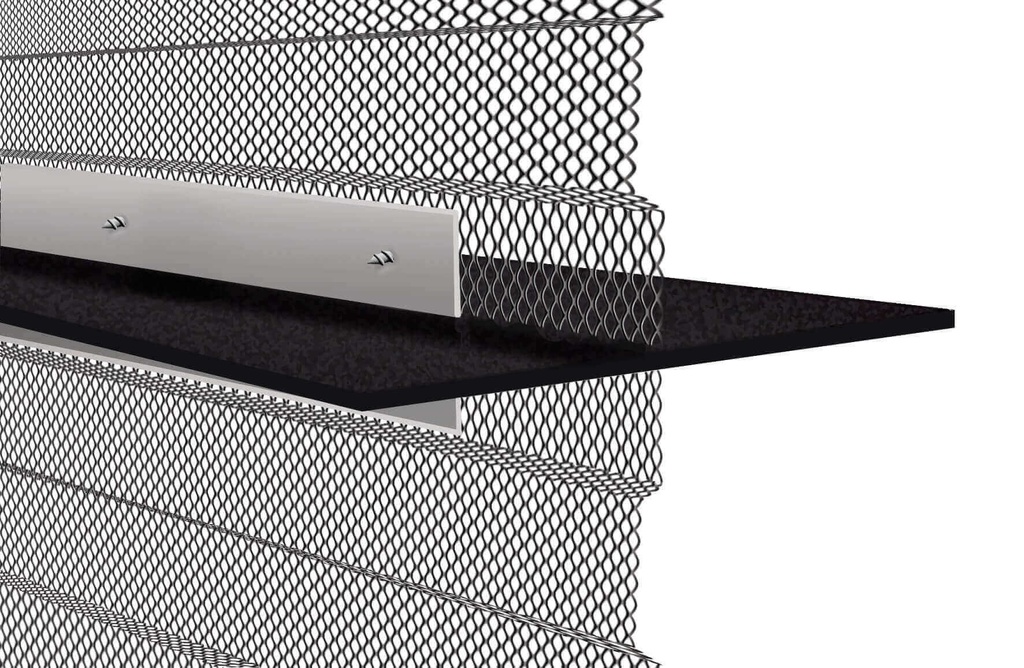

WPM® FORMWORK WATERSTOP (bitumen)
Hidden formwork profile to waterproof and finish construction joints.
AREA OF APPLICATION:
WPM FORMWORK WATERSTOP is used as a hidden or lost formwork to waterproof and form the end of the construction joint. The element is used for floor, wall, or ceiling formworks.
PROPERTIES:
- Floor-, wall- ceiling formworks
- Watertight trapezoid shaped construction joint
- Special coating, highly elastic, not reactive with water exrta layer with bitumen
- Suitable for use in buildings in contact with wastewater, as well as various agricultural buildings, where there is a choice of additional protection for metal parts
- Officially tested at Taltech University - N° 372-A/19
- Watertight against pressurized water of 2,4 bar/24m below surface
- Made in Estonia
SPECIFICATIONS:
- Steel material: galvanized steel
- Steel sheet hight: 150 mm
- Steel sheet thickness: approx. 0,7 mm
- Steel sheet length: 2,2 m, 1,095m
- Special coating: polymer coating + bitumen coating
- Thickness of the complete sheet: approx. 1,7 mm
- Color:
- calvanized steel-silver
- coating- black
- Temperature resistance: -35°C - +75 °C
- Working temperature: no limit
PACKAGE: (export)
6 x 2,2 m or 1,095m main detail, 12 x e.g plate metal sheet details, joint clips, fixing glue tubes, metal screws.
Jūsu dinamiskais fragments tiks parādīts šeit...
Šis ziņojums tiek parādīts, jo neesat norādījis ne filtru, ne veidni, ko izmantot.
Specifications
| garums | 2,2m, 1,095m, 1,095m corner |
| platums | 200, 300, 400, 500, 600, 800 |
| pārklājums | bitumena pārklājums |
