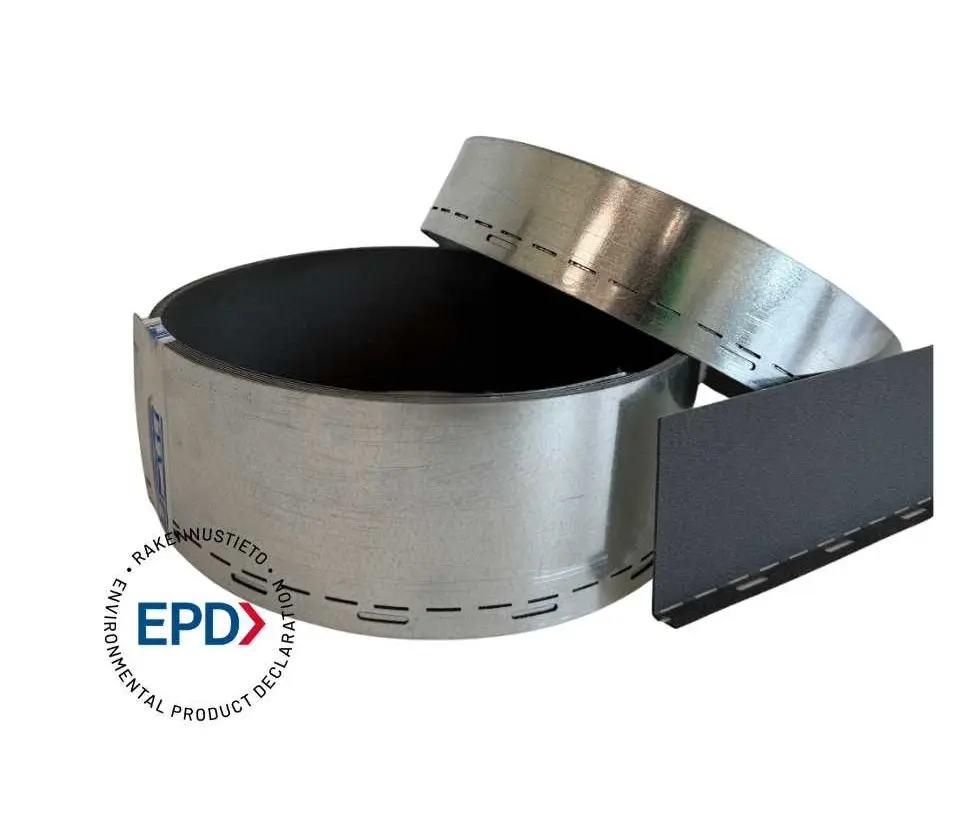

WPM METAL SHEET WATERSTOP R/L

WPM METAL SHEET WATERSTOP R/L

https://www.primostar.eu/web/image/product.template/8416/image_1920?unique=682a64d

Лист для стыковки конструкций подземных бетонных конструкций на русском языке

AREA OF APPLICATION:

WPM® METAL SHEET WATERSTOP R/L is used to waterproof construction joints like floor-wall, wall-wall, floor-floor, and wall-ceiling against pressurized water in various below-grade reinforced concrete structures. The most common use areas are parking houses, water tanks, etc.

PROPERTIES:
  • Special coating, can be selected according to the place of use
  • • Can be installed with installation fixers
  • • Easy to connect with deformation PVC joint tapes
  • • Watertight against pressurized water up to 24 m (2.4 bar), officially tested at TalTech University - N° 372-A/19
  • • Tested for water pressure up to 15 bar - test protocol no.1/2024
  • • Made in Estonia
SPECIFICATIONS:
  • • Steel material: galvanized steel
  • • Steel sheet height: as selected
  • • Steel sheet thickness: 0,5 mm
  • • Coating: as selected
  • • Temperature resistance: -35°C - +75°C
  • • Working temperature: no limits
PACKAGE:
Width 155+20 / 125+20 - all coatings
Box: 3 x 7,5 m detail, joint clips, 2 fixing glue tubes
Widht 65+20 - all coatings
Box: 4 x 7,5 m detail, joint clips, 2 fixing glue tubes


286,85 € 286.85 EUR 286,85 € Исключено из налогообложения

Available to order, ask for price and delivery time

(12,75 € / Единицы)
  • width
  • coating
  • Salespackaging
  • бренд

Такая комбинация не существует

WPM
Свяжитесь с нами

Условия и положения
30-дневная гарантия возврата денег
Доставка: 2-3 рабочих дня

Поделиться


  • Special coating, elastic, not reactive with water
  • The mineral coating turns homogeneous with concrete
  • Can be installed directly into the fresh concrete
  • Can be installed with installation fixers
  • Easy to connect with deformation PVC joint tapes
  • Официально протестировано в Университете TalTech – Тест № 372-A/19
  • Обеспечивает водонепроницаемость до 2,4 бар
  • Toodetud Estonia


WPM® METAL SHEET WATERSTOP 125R is used to waterproof construction joints like floor-wall, wall-wall, floor-floor, and wall-ceiling against pressurized water in various below-grade reinforced concrete structures. The most common use areas are parking houses, water tanks, etc.

Start with the customer – find out what they want and give it to them.

Ehitusvuukidesõlmed

Here, you can find all construction nodes that we watertight with our materials, such as floor-wall, wall-ceiling, crack inducing waterstop and etc...

Vaata rohkem

Paigaldusvideo

Vaata, kui lihtne on paigaldada vuugiplekki põranda-seina konstruktsiooni töövuuki.




Проекты

Tehtud tööde lehelt leiad rohkem projekte, kus oleme kasutanud töövuugiprofiili.

Rohkem tehtuid töid


Упаковки
  • 1m
  • 30 pcs



Упаковки
  • 1m
  • 30 pcs



Упаковки
  • 1m
  • 30 pcs


Спецификации

width 155+20, 125+20, 65+20
coating polymer coating, polymer coating + protective film, bitumen + bitumen coating, bitumen coating, Suitable for drinking water, mineral + mineral coating
Salespackaging Box (3x7,5m), Box (4x7,5m)
бренд WPM
